MATERIAL Steel - Zinc plated Rubber

Shore hardness 55

Temperature range:-30 °C up to 80 °C.

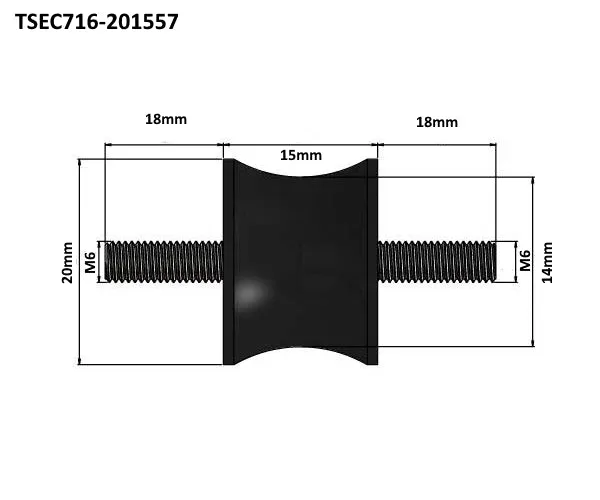

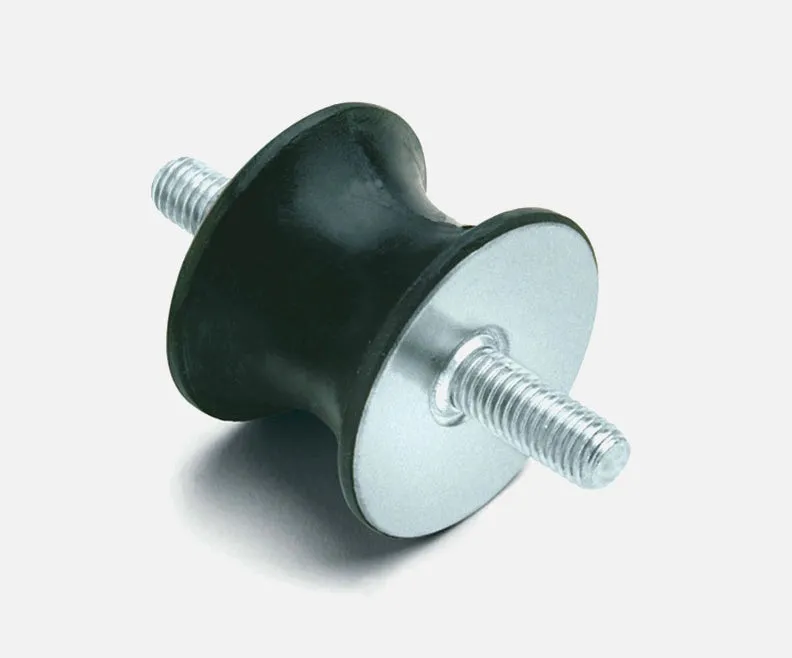

Anti-vibration mounts with male threads on both sides. The body is waisted or 'hourglass' shaped. The effect of 'waisting' these male/male buffers gives them more durability even at peak dynamic loads.

Dangerous peak stresses can be avoided at the edges of the bonded surfaces, these buffers are less affected by tensile stress than the standard cylindrical ones.

Two sizes are carried as standard, others can be requested upon asking.
